Products-1685 Record(s)

	Mfr Part #	Price ($)	Quantity Available	Series	Package	Product Status	Number of Channels	Inputs - Side 1/Side 2	Voltage - Isolation	Common Mode Transient Immunity (Min)	Input Type	Output Type	Current - Output / Channel
	FOD8163SD AC IN-DARLINGTON OUT OPTOCOUPLER Fairchild Semiconductor	$0.19	1859	-	Bulk	Obsolete	1	-	5000Vrms	-	AC, DC	Darlington	80 mA
	6N137V LOGIC IC OUTPUT OPTOCOUPLER Fairchild Semiconductor	$0.00	587	-	Bulk	Obsolete	1	1/0	2500Vrms	10kV/µs (Typ)	DC	Open Collector	50 mA
	6N137SV LOGIC IC OUTPUT OPTOCOUPLER Fairchild Semiconductor	$1.37	3776	-	Bulk	Obsolete	1	1/0	2500Vrms	10kV/µs (Typ)	DC	Open Collector	50 mA
	HCPL0600R1 LOGIC IC OUTPUT OPTOCOUPLER onsemi	Obsolete	2876	-	Bulk	Obsolete	1	1/0	3750Vrms	5kV/µs	DC	Open Collector	50 mA
	FOD817S TRANSISTOR OUTPUT OPTOCOUPLER, 5 Fairchild Semiconductor	$0.06	4007	*	Bulk	Active	-	-	-	-	-	-	-
	HCPL2631SM LOGIC IC OUTPUT OPTOCOUPLER, 2-E onsemi	Active	2667	-	Bulk	Active	2	2/0	5000Vrms	5kV/µs	DC	Open Collector	25 mA
	HCPL2630SDV LOGIC IC OUTPUT OPTOCOUPLER, 2-E onsemi	Active	2162	-	Bulk	Active	2	2/0	2500Vrms	10kV/µs (Typ)	DC	Open Collector	50 mA
	H11L1M LOGIC IC OUTPUT OPTOCOUPLER, 750 onsemi	$0.23	30000	-	Bulk	Active	1	1/0	5000Vrms	-	DC	Open Collector	50 mA
	6N137M 6N137M - HIGH SPEED 10MBIT/S LOG Fairchild Semiconductor	$0.31	20000	*	Bulk	Active	-	-	-	-	-	-	-
	HCPL2631V LOGIC IC OUTPUT OPTOCOUPLER, 2-E onsemi	$1.11	751	-	Bulk	Active	2	2/0	2500Vrms	5kV/µs	DC	Open Collector	50 mA
	FOD0720R2 HIGH CMR, 25MBIT/SEC LOGIC GATE onsemi	$0.82	4800	-	Bulk	Active	1	1/0	3750Vrms	20kV/µs	Logic	Push-Pull, Totem Pole	10 mA
	HCPL-543K#200 OPTOISO 1.5KV 2CH PUSH PULL 8DIP Broadcom Limited	$699.76	3884	-	Bulk	Active	2	2/0	1500VDC	500V/µs	DC	Push-Pull, Totem Pole	25 mA
	HCPL-523K OPTOISO 1.5KV 2CH PUSH PULL 8DIP Broadcom Limited	$753.85	4665	-	Bulk	Active	2	2/0	1500VDC	1kV/µs	DC	Push-Pull, Totem Pole	15 mA

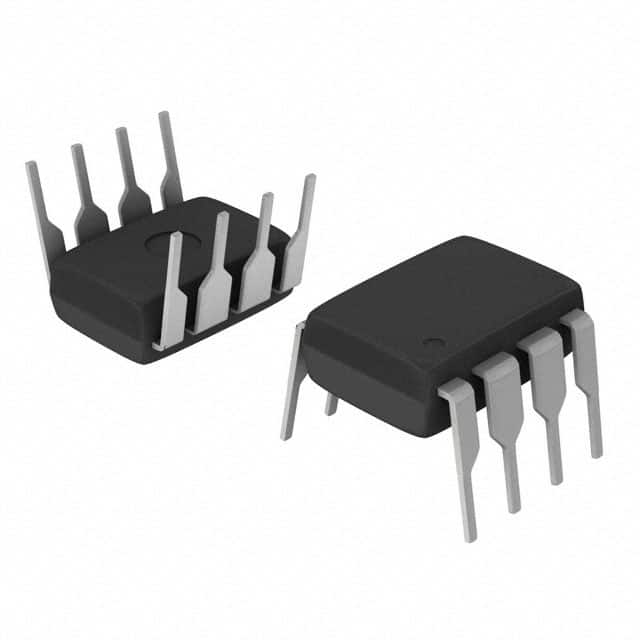

	5962-8876904KPC OPTOISO 1.5KV 2CH PUSH PULL 8DIP Broadcom Limited	$753.85	2569	-	Tube	Active	2	2/0	1500VDC	1kV/µs	DC	Push-Pull, Totem Pole	15 mA
	5962-8876904KYC OPTOISO 1.5KV 2CH PUSH PULL 8SMD Broadcom Limited	$753.85	3578	-	Tube	Active	2	2/0	1500VDC	1kV/µs	DC	Push-Pull, Totem Pole	15 mA

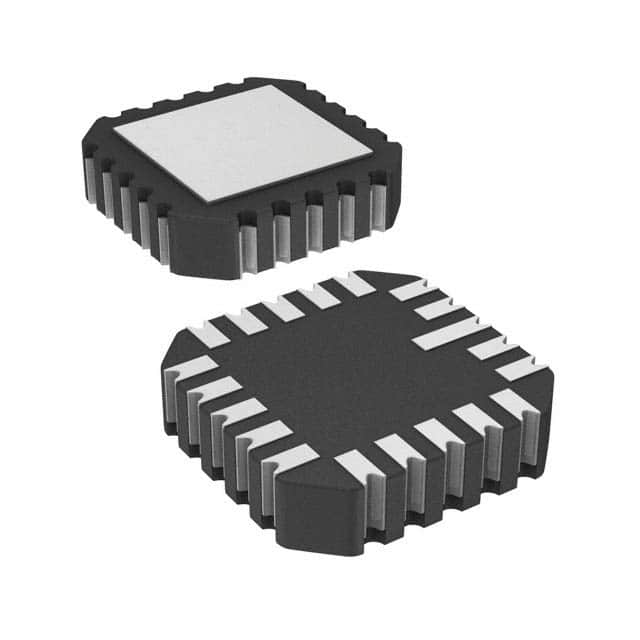

	5962-8876905K2A OPTOISO 1.5KV PUSH PULL 20LCCC Broadcom Limited	$776.43	4934	-	Tube	Active	2	2/0	1500VDC	1kV/µs	DC	Push-Pull, Totem Pole	15 mA
	5962-8876906KFC OPTOISO 1.5KV PUSH PULL 16FLATPK Broadcom Limited	$855.93	2956	-	Tube	Active	4	4/0	1500VDC	1kV/µs	DC	Push-Pull, Totem Pole	15 mA
	HCPL-7601 OPTOISO 3.75KV OPEN COLL 8DIP Broadcom Limited	Obsolete	4293	-	Tube	Obsolete	1	1/0	3750Vrms	1kV/µs	DC	Open Collector, Schottky Clamped	50 mA
	HCPL-0601#560 OPTOISO 3.75KV OPN COLLECTOR 8SO Broadcom Limited	Active	4510	-	Tape & Reel (TR)	Discontinued at	1	1/0	3750Vrms	10kV/µs	DC	Open Collector, Schottky Clamped	50 mA
	HCPL-261A-520 OPTOISO 5KV OPEN COLL 8DIP GW Broadcom Limited	Active	2552	-	Tape & Reel (TR)	Discontinued at	1	1/0	5000Vrms	1kV/µs	DC	Open Collector, Schottky Clamped	50 mA
	HCPL-4506#560 OPTOISO 3.75KV OPEN COLL 8DIP GW Broadcom Limited	Active	2786	-	Tape & Reel (TR)	Discontinued at	1	1/0	3750Vrms	15kV/µs	DC	Open Collector, Schottky Clamped	15 mA
	HCPL-0738-500E OPTOISO 3.75KV 2CH OPEN COLL 8SO Broadcom Limited	$6.85	4971	-	Tape & Reel (TR)	Obsolete	2	2/0	3750Vrms	10kV/µs	DC	Open Collector	2 mA
	HCPL-M456#500 OPTOISO 3.75KV OPN COLLECTOR 5SO Broadcom Limited	Active	4629	-	Tape & Reel (TR)	Discontinued at	1	1/0	3750Vrms	15kV/µs	DC	Open Collector, Schottky Clamped	15 mA
	HCPL-260L#500 OPTOISO 3.75KV OPEN COLL 8DIP GW Broadcom Limited	Active	3489	-	Tape & Reel (TR)	Discontinued at	1	1/0	3750Vrms	10kV/µs	DC	Open Collector, Schottky Clamped	50 mA
	HCPL-4661#500 OPTOISO 3.75KV OPEN COLL 8DIP GW Broadcom Limited	Active	2319	-	Tape & Reel (TR)	Discontinued at	2	2/0	3750Vrms	15kV/µs	DC	Open Collector, Schottky Clamped	50 mA
