Mfr Part # | Price ($) | Quantity Available | Series | Package | Product Status | Filter Type | Frequency - Cutoff or Center | Number of Filters | Filter Order | Voltage - Supply | Mounting Type | Package / Case | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| $19.32 | 276 | - | Tube | Active | Universal Switched Capacitor | 25kHz | 4 | 8th | 3.14V ~ 11V, ±3.14V ~ 5.5V | Surface Mount | 28-SSOP (0.209", 5.30mm Width) | ||
| $24.96 | 1635 | - | Tube | Active | Antialiasing | 150kHz | 1 | 8th | 2.7V ~ 10.5V | Surface Mount | 16-SSOP (0.209", 5.30mm Width) | ||

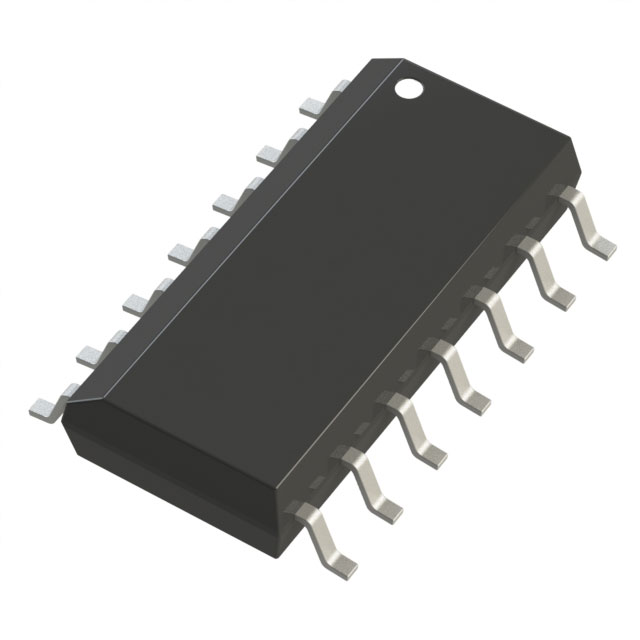

| $11.80 | 840 | - | Tube | Active | Universal Switched Capacitor | 40kHz | 1 | 2nd | ±2.37V ~ 5V | Surface Mount | 14-SOIC (0.154", 3.90mm Width) | ||
| $22.79 | 782 | - | Tube | Active | Universal, Continuous-Time | 150kHz | 4 | 8th | 4.75V ~ 10.5V, ±4.75V ~ 5.25V | Surface Mount | 20-SSOP (0.209", 5.30mm Width) | ||
| $17.67 | 394 | - | Tube | Active | Universal Switched Capacitor | 25kHz | 4 | 8th | 3.14V ~ 11V, ±3.14V ~ 5.5V | Surface Mount | 28-SSOP (0.209", 5.30mm Width) | ||
| $16.83 | 120 | - | Tube | Active | Universal Switched Capacitor | 50kHz | 4 | 8th | 3.14V ~ 11V, ±3.14V ~ 5.5V | Through Hole | 24-DIP (0.300", 7.62mm) | ||
| $11.82 | 300 | - | Tube | Active | Universal Switched Capacitor | 40kHz | 2 | 4th | 2.7V ~ 11V, ±2.7V ~ 5.5V | Surface Mount | 16-SSOP (0.154", 3.90mm Width) | ||
| $24.96 | 4073 | - | Tape & Reel (TR) | Active | Antialiasing | 150kHz | 1 | 8th | 2.7V ~ 10.5V | Surface Mount | 16-SSOP (0.209", 5.30mm Width) | ||

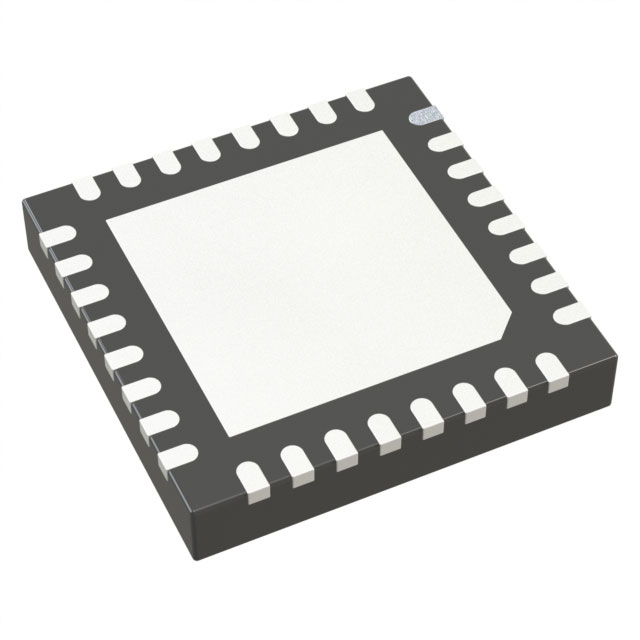

| $134.05 | 465 | - | Strip | Active | Low Pass | 2.4GHz ~ 4GHz | 1 | - | 0V ~ 14V | Surface Mount | 32-WFQFN Exposed Pad, CSP | ||
| $26.19 | 174 | - | Tube | Active | Universal, Continuous-Time | 300kHz | 4 | 8th | 4.75V ~ 10.5V, ±4.75V ~ 5.25V | Surface Mount | 20-SSOP (0.209", 5.30mm Width) | ||
| $37.54 | 154 | - | Tube | Active | Elliptic or Bessel Low Pass | 30kHz | 1 | 8th | 4.75V ~ 16V, ±2.375V ~ 8V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) | ||
| $16.27 | 194 | - | Tube | Active | Low Pass | 2.3MHz | 1 | 7th | ±5V, 5V | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | ||
| $33.80 | 148 | - | Tube | Active | Cauer, Low Pass Switched Capacitor | 20kHz | 1 | 8th | ±2.37V ~ 8V | Through Hole | 14-DIP (0.300", 7.62mm) | ||
| $13.53 | 117 | - | Tube | Active | Band Pass | 200kHz | 2 | 2nd | 2.7V ~ 11V, ±2.7V ~ 5.5V | Surface Mount | 16-SSOP (0.154", 3.90mm Width) | ||
| $16.33 | 3919 | - | Bulk | Active | Low Pass | 2.5MHz | 2 | 9th | 2.7V ~ 3.6V | Surface Mount | 24-WFQFN Exposed Pad | ||
| $134.29 | 2082 | - | Strip | Active | Band Pass | 1.95GHz ~ 3.4GHz | 1 | - | 0V ~ 14V | Surface Mount | 32-WFQFN Exposed Pad, CSP | ||
| $11.05 | 3483 | - | Tube | Active | Universal Switched Capacitor | 40kHz | 2 | 4th | 2.7V ~ 11V, ±2.7V ~ 5.5V | Surface Mount | 16-SOIC (0.154", 3.90mm Width) | ||
| $18.34 | 2813 | - | Tube | Active | Band Pass | 300kHz | 2 | 5th | 2.7V ~ 3.6V | Surface Mount | 24-WFQFN Exposed Pad | ||
| $21.06 | 4554 | - | Tube | Active | Band Pass | 300kHz | 2 | 5th | 2.7V ~ 3.6V | Surface Mount | 24-WFQFN Exposed Pad | ||
| $21.89 | 4665 | - | Tube | Active | Universal Switched Capacitor | 35kHz | 3 | 6th | 4.74V ~ 16V, ±2.37V ~ 8V | Surface Mount | 20-SOIC (0.295", 7.50mm Width) | ||
| $39.60 | 2638 | - | Tube | Active | Linear Phase, Low Pass Switched Capacitor | 200kHz | 1 | 8th | ±2.37V ~ 8V | Surface Mount | 16-SOIC (0.295", 7.50mm Width) | ||
| $6.86 | 2141 | - | Tube | Active | Butterworth | 256kHz | 1 | 4th | 2.7V ~ 11V, ±2.7V ~ 5.5V | Surface Mount | 16-SSOP (0.154", 3.90mm Width) | ||
| $3.70 | 2810 | - | Tape & Reel (TR) | Active | Bessel, Low Pass Switched Capacitor | 256kHz | 1 | 4th | 2.7V ~ 11V, ±2.7V ~ 5.5V | Surface Mount | 16-SSOP (0.154", 3.90mm Width) | ||
| $4.08 | 2771 | - | Tape & Reel (TR) | Active | Bessel, Low Pass Switched Capacitor | 256kHz | 1 | 4th | 2.7V ~ 11V, ±2.7V ~ 5.5V | Surface Mount | 16-SSOP (0.154", 3.90mm Width) | ||
| $7.03 | 4182 | - | Tape & Reel (TR) | Active | Universal Switched Capacitor | 40kHz | 2 | 4th | 2.7V ~ 11V, ±2.7V ~ 5.5V | Surface Mount | 16-SSOP (0.154", 3.90mm Width) |
