Products-3733 Record(s)

Mfr Part #	Price ($)	Quantity Available	Series	Package	Product Status	Type	Number of Circuits	Ratio - Input:Output	Differential - Input:Output	Input	Output	Voltage - Supply

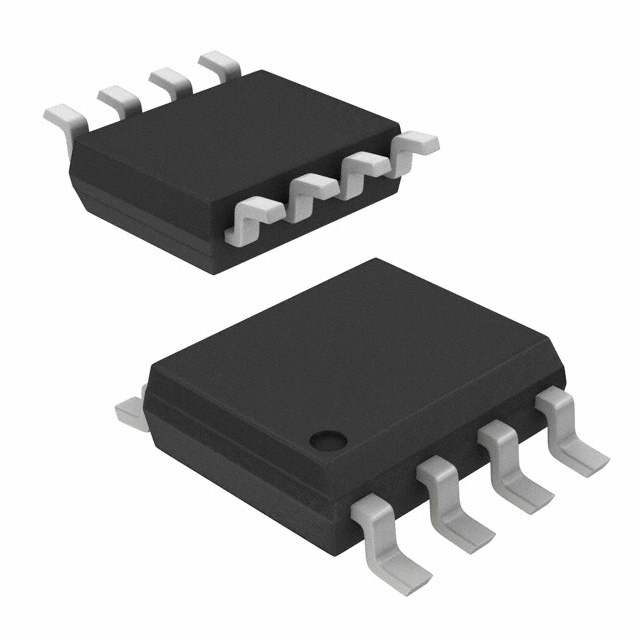

100LVEL11MX IC CLK BUFFER 1:2 8SOIC onsemi	$3.15	2498	100LVEL	Bulk	Obsolete	Fanout Buffer (Distribution)	1	1:2	Yes/Yes	ECL	ECL	3V ~ 3.8V

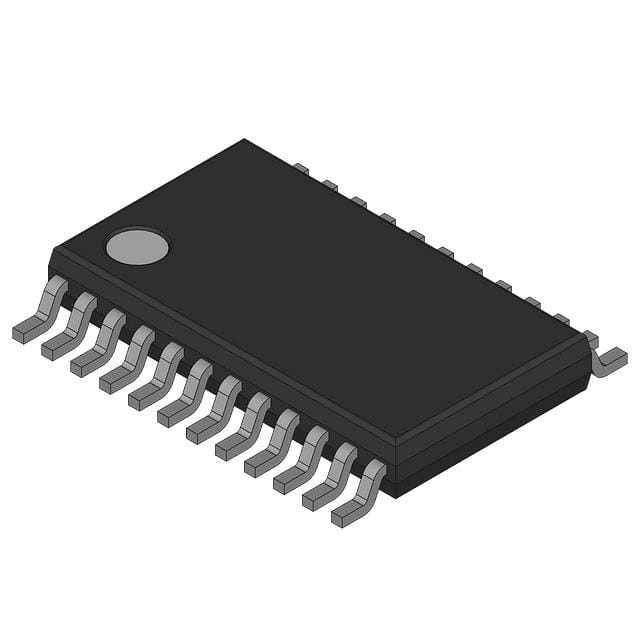

GTLP6C817MTC IC CLK BUFFER 1:2, 1:6 24TSSOP onsemi	$3.92	10741	-	Tube	Obsolete	Fanout Buffer (Distribution)	2	1:2, 1:6	No/No	GTLP, TTL	GTLP, TTL	3.15V ~ 5.25V
GTLP6C817MTCX IC CLK BUFFER 1:2, 1:6 24TSSOP onsemi	$3.92	2500	-	Bulk	Obsolete	Fanout Buffer (Distribution)	2	1:2, 1:6	No/No	GTLP, TTL	GTLP, TTL	3.15V ~ 5.25V
NB4N121KMNG IC CLK BUFFER 1:21 400MHZ 52QFN onsemi	$5.34	170	-	Tray	Obsolete	Fanout Buffer (Distribution)	1	1:21	Yes/Yes	CML, LVCMOS, LVDS, LVPECL, LVTTL	HCSL	3V ~ 3.6V
MC100ES6111FAR2 IC CLK BUFFER 2:10 2.7GHZ 32LQFP NXP USA Inc.	$7.33	1564	100ES	Bulk	Active	Fanout Buffer (Distribution), Multiplexer	1	2:10	Yes/Yes	ECL, HSTL, PECL	ECL, PECL	2.375V ~ 3.465V
MC100ES6226FA IC CLK BUFFER 1:9 3GHZ 32LQFP NXP USA Inc.	$10.13	220	100ES	Bulk	Active	Fanout Buffer (Distribution), Divider	1	1:9	Yes/Yes	LVPECL	LVCMOS, LVPECL	2.375V ~ 3.465V
W162-09G IC CLK ZD BUF 3:9 133MHZ 16SOIC Cypress Semiconductor Corp	$1.06	4414	-	Bulk	Active	Zero Delay Buffer	1	3:9	No/No	-	-	2.97V ~ 3.63V
CY2DP814SC IC CLK BUFFER 1:4 450MHZ 16SOIC Cypress Semiconductor Corp	$1.60	3176	-	Bulk	Active	Fanout Buffer (Distribution)	1	1:4	Yes/Yes	LVDS, LVPECL, LVTTL	LVPECL	3.135V ~ 3.465V
CY2CC1810OCT IC CLK BUFFER 1:10 200MHZ 24SSOP Cypress Semiconductor Corp	$1.94	5970	-	Bulk	Active	Fanout Buffer (Distribution)	1	1:10	No/No	LVCMOS, LVTTL	AVCMOS	2.375V ~ 2.625V, 3.135V ~ 3.465V
CY2CC910OIT IC CLK BUFFER 1:10 650MHZ 20SSOP Cypress Semiconductor Corp	$2.07	5770	-	Bulk	Active	Fanout Buffer (Distribution)	1	1:10	No/No	AVCMOS	AVCMOS	1.71V ~ 3.3V, 2.375V ~ 3.3V, 3.135V ~ 3.3V
CY2309NZSZC-1H CLOCK FANOUT BUFFER 9-OUT 16PIN Cypress Semiconductor Corp	$2.24	6150	*	Bulk	Active	-	-	-	-	-	-	-
IMIZ9973BA IC CLK ZD BUF 2:13 125MHZ 52TQFP Cypress Semiconductor Corp	$3.57	18116	-	Bulk	Active	Zero Delay Buffer	1	2:13	Yes/No	PECL	Clock	2.97V ~ 3.63V, 3.9V ~ 3.6V
IMIZ9972BAT IC CLK ZD BUF 2:13 125MHZ 52TQFP Cypress Semiconductor Corp	$4.05	22495	-	Bulk	Active	Zero Delay Buffer	1	2:13	Yes/No	Crystal	Clock	2.97V ~ 3.63V, 2.9V ~ 3.6V
CY2DP818ZI IC CLK BUFFER 1:8 350MHZ 38TSSOP Cypress Semiconductor Corp	$4.46	9709	-	Bulk	Active	Fanout Buffer (Distribution)	1	1:8	Yes/Yes	LVDS, LVPECL, LVTTL	LVPECL	3.135V ~ 3.465V
CY7B9973V-AC IC CLK BUFFER 2:13 200MHZ 52TQFP Cypress Semiconductor Corp	$22.89	1488	-	Bulk	Active	Clock Buffer	1	2:13	Yes/No	LVTTL	LVTTL	2.97V ~ 3.63V
CY23S05SXC-1HKA CY23S05 - 3.3 V Spread Aware Ze Cypress Semiconductor Corp	$6.94	288	-	Bulk	Obsolete	-	-	-	-	-	-	-
CY2CP1504ZXIKO CY2CP1504 - 1:4 LVCMOS to LVPECL Cypress Semiconductor Corp	$9.96	6060	-	Bulk	Obsolete	Fanout Buffer (Distribution), Multiplexer	1	2:4	No/Yes	LVCMOS	LVPECL	2.375V ~ 2.625V, 3.135V ~ 3.465V
CY23FS080XCT CY23FS080 - Failsafe 2.5V/ 3.3V Cypress Semiconductor Corp	$10.92	1000	-	Bulk	Obsolete	-	-	-	-	-	-	-
CY23FS080XC CY23FS080 - Failsafe 2.5V/ 3.3V Cypress Semiconductor Corp	$10.92	184	-	Bulk	Obsolete	-	-	-	-	-	-	-
CY23FS080XI-04 CY23FS080 - Failsafe 2.5V/ 3.3V Cypress Semiconductor Corp	$10.94	444	-	Bulk	Obsolete	-	-	-	-	-	-	-

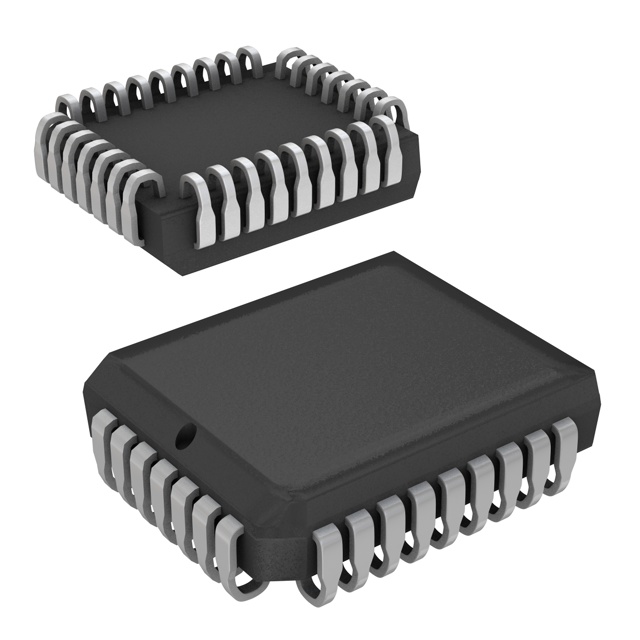

CY7B991-2JXC IC CLK BUFFER 8:8 80MHZ 32PLCC Cypress Semiconductor Corp	$7.54	1209	RoboClock™	Tube	Obsolete	Buffer/Driver	1	8:8	Yes/Yes	3-State, TTL	TTL	4.5V ~ 5.5V
74FCT163345X4APA 3.3V 1-TO 4 ADDRESS/CLOCK DRIVER IDT, Integrated Device Technology Inc.	$0.67	3412	*	Bulk	Active	-	-	-	-	-	-	-
QS5806ZQATQ QS5806ZQATQ IDT, Integrated Device Technology Inc.	$2.01	4345	*	Bulk	Active	-	-	-	-	-	-	-
IDT49FCT805KAQPI FAST CMOS BUFFER/CLOCK DRIVER IDT, Integrated Device Technology Inc.	$3.33	135	*	Bulk	Active	-	-	-	-	-	-	-
QS5920ZQAPA QS5920 - CLOCK DRIVER IDT, Integrated Device Technology Inc.	$5.56	4750	*	Bulk	Active	-	-	-	-	-	-	-

	Mfr Part #
	100LVEL11MX IC CLK BUFFER 1:2 8SOIC onsemi
	GTLP6C817MTC IC CLK BUFFER 1:2, 1:6 24TSSOP onsemi
	GTLP6C817MTCX IC CLK BUFFER 1:2, 1:6 24TSSOP onsemi
	NB4N121KMNG IC CLK BUFFER 1:21 400MHZ 52QFN onsemi
	MC100ES6111FAR2 IC CLK BUFFER 2:10 2.7GHZ 32LQFP NXP USA Inc.
	MC100ES6226FA IC CLK BUFFER 1:9 3GHZ 32LQFP NXP USA Inc.
	W162-09G IC CLK ZD BUF 3:9 133MHZ 16SOIC Cypress Semiconductor Corp
	CY2DP814SC IC CLK BUFFER 1:4 450MHZ 16SOIC Cypress Semiconductor Corp
	CY2CC1810OCT IC CLK BUFFER 1:10 200MHZ 24SSOP Cypress Semiconductor Corp
	CY2CC910OIT IC CLK BUFFER 1:10 650MHZ 20SSOP Cypress Semiconductor Corp
	CY2309NZSZC-1H CLOCK FANOUT BUFFER 9-OUT 16PIN Cypress Semiconductor Corp
	IMIZ9973BA IC CLK ZD BUF 2:13 125MHZ 52TQFP Cypress Semiconductor Corp
	IMIZ9972BAT IC CLK ZD BUF 2:13 125MHZ 52TQFP Cypress Semiconductor Corp
	CY2DP818ZI IC CLK BUFFER 1:8 350MHZ 38TSSOP Cypress Semiconductor Corp
	CY7B9973V-AC IC CLK BUFFER 2:13 200MHZ 52TQFP Cypress Semiconductor Corp
	CY23S05SXC-1HKA CY23S05 - 3.3 V Spread Aware Ze Cypress Semiconductor Corp
	CY2CP1504ZXIKO CY2CP1504 - 1:4 LVCMOS to LVPECL Cypress Semiconductor Corp
	CY23FS080XCT CY23FS080 - Failsafe 2.5V/ 3.3V Cypress Semiconductor Corp
	CY23FS080XC CY23FS080 - Failsafe 2.5V/ 3.3V Cypress Semiconductor Corp
	CY23FS080XI-04 CY23FS080 - Failsafe 2.5V/ 3.3V Cypress Semiconductor Corp
	CY7B991-2JXC IC CLK BUFFER 8:8 80MHZ 32PLCC Cypress Semiconductor Corp
	74FCT163345X4APA 3.3V 1-TO 4 ADDRESS/CLOCK DRIVER IDT, Integrated Device Technology Inc.
	QS5806ZQATQ QS5806ZQATQ IDT, Integrated Device Technology Inc.
	IDT49FCT805KAQPI FAST CMOS BUFFER/CLOCK DRIVER IDT, Integrated Device Technology Inc.
	QS5920ZQAPA QS5920 - CLOCK DRIVER IDT, Integrated Device Technology Inc.
